Often overlooked, the Intermediate Distribution Frame (IDF) serves as the critical nerve center for localized network segments. At a major food and beverage facility in Arkansas, USA, their congested, inefficient, and poorly organized IDF was impacting network performance.
Often overlooked, the Intermediate Distribution Frame (IDF) serves as the critical nerve center for localized network segments. At a major food and beverage facility in Arkansas, USA, their congested, inefficient, and poorly managed IDFs had become the primary bottleneck, severely limiting throughput and introducing cascading instability across their production network.

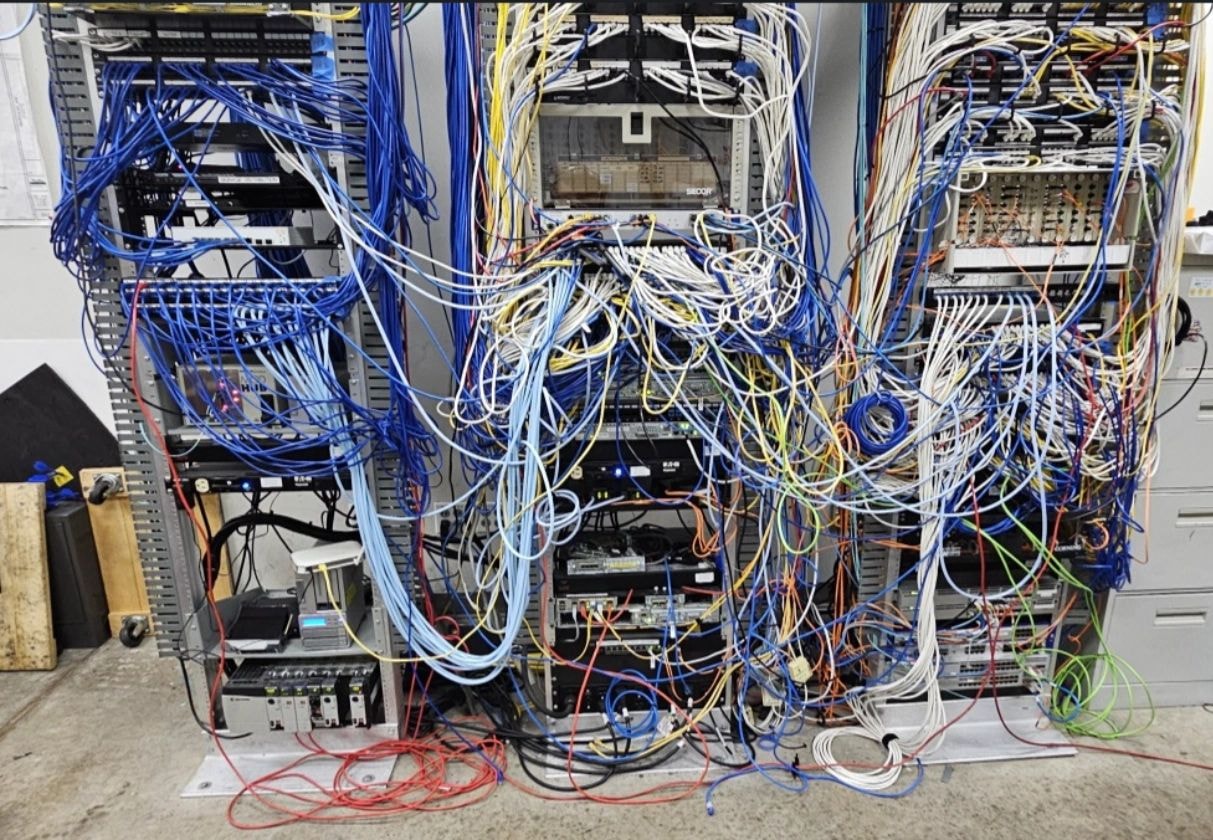

Our wired infrastructure survey peeled back the layers of this challenge, revealing extensive cabling congestion, inconsistent labeling, and a critical lack of proper cable management across multiple key locations. In an environment where both vital IT (Information Technology) and precision OT (Operational Technology) systems churn around the clock, even a fleeting connectivity hiccup had the chilling potential to grind the entire production line to a halt. The mandate was clear, yet daunting: to completely redesign, strategically relocate, and meticulously restore order; all without skipping a beat in their continuous production schedule.
Diving Deep: Our Initial Diagnosis & Strategic Planning
3sab's comprehensive site detail review wasn't just about identifying problems; it was about understanding the story behind the spaghetti. We quickly pinpointed three priority zones within the IDFs – each presenting its own unique set of complexities demanding a tailored structured cabling solution. These complexities include IDFs
- Tucked away in a utility breaker room, was a lesson in constrained space. Its compact footprint, coupled with loosely managed fiber runs, cried out for ultra-efficient space utilization and an impeccably clean, safe cable organization.
- Precariously positioned above the bustling production floor, was bursting at its seams. Extreme cable congestion, frustrating accessibility issues, and constant environmental exposure made a full relocation behind the existing wall an absolute necessity.
- Within the office tech room, housed four racks packed with legacy patch cords, mixed Cat6/Cat6A runs, and unorganized vertical routes. Maintenance teams struggled to trace connections without risking downtime.
To navigate this intricate redesign, 3sab’s engineering team embarked on a meticulous port mapping exercise. Every single copper and fiber link was painstakingly traced, documented, and accounted for before any migration commenced. Our strategic recommendations were clear and impactful:
- Relocate IDF into a robust 42U NEMA 12 standing cabinet, engineered to defy industrial environmental challenges.
- Install dedicated cable ladders and fiber runners to forge crystal-clear routing pathways, banishing tangles forever.
- Deploy enterprise-grade Commscope Systimax Cat6A cabling and Corning SM fiber – ensuring a high-performance, resilient backbone that would stand the test of time.
- Integrate universal vertical and horizontal cable management systems to bring enduring structure and effortless scalability to each IDF.
Every single decision, every strategic move, stemmed from one unwavering principle: designing for longevity and serviceability, not just a temporary fix. This was about building an enterprise network upgrade that would last.
From Scratches to Solutions: The Design & Problem-Solving Journey
The earliest planning sessions – fondly, if informally, known as the “chicken scratch” phase – were where 3sab’s technical creativity truly sparkled. It was in these rough sketches and rapid-fire discussions that we confronted the facility’s most significant hurdle: a strict 12-hour maintenance window and a relentless, 24/7 production schedule. Precision planning wasn't just important; it was non-negotiable.
Our expert engineers meticulously crafted a phased migration plan, designed to surgically address each IDF with minimal impact:
- Phase 1: Focus entirely on migrating and rigorously testing
- Phase 2: Execute a complete rewiring and cleanup
- Phase 3: Finalize all cable management and labeling
This strategic, phased approach drastically slashed downtime risks, allowing critical production systems to hum along uninterrupted between each transition. To further accelerate deployment, our team ingeniously devised a plan to pre-stage complex equipment off-site, ensuring rapid, seamless integration once on location.
Specialized considerations were paramount, especially for fiber routing through tough industrial walls. This required a new 4-inch core alignment, perfectly integrated with the existing cable path for the relocated IDF. The result was an exceptionally clean, highly accessible layout that not only optimized crucial airflow but utterly eliminated hazardous cable cross-pathing.
The Art of Installation: Precision in Every Connection
With the strategic blueprint firmly in place, execution began with a symphony of synchronized timing and an unyielding focus on safety. Over multiple, carefully managed phases, the dedicated team:
- Installed cutting-edge ladder racks, vertical managers, and horizontal troughs, meticulously designed to separate and route cables with unparalleled efficiency and order.

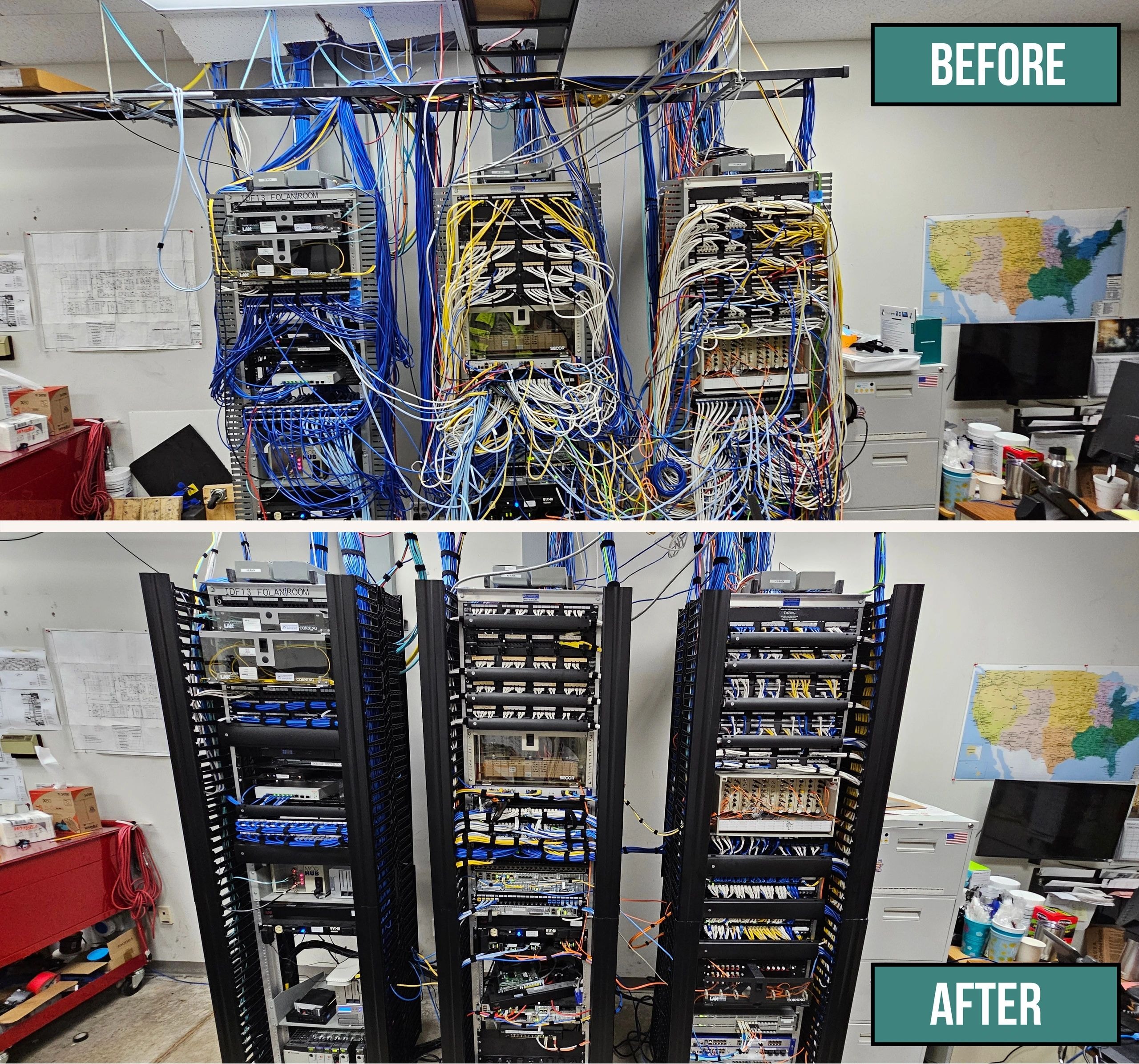

- Systematically removed outdated, problematic patch cords and standardized all terminations using pristine Cat6A blue cabling, creating consistent visual appeal and flawless functional uniformity.

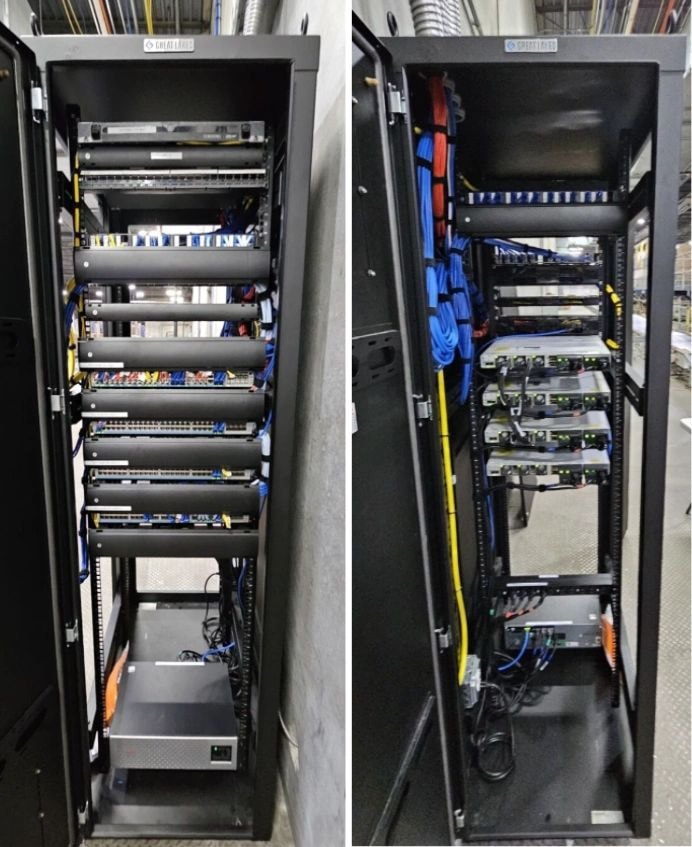

- Successfully relocated IDF into its brand-new industrial-grade cabinet, now boasting robust dust and moisture protection.
- Labeled, tested, and comprehensively documented every single port and patch, guaranteeing effortless future serviceability and rapid fault isolation.
Every step, no matter how small, was executed with meticulous attention to detail. This isn't just about functionality; it's about showcasing cabling artistry – crafting an infrastructure that is both visually stunning and technically flawless. Despite the monumental scale of work, our precise migration strategy allowed the project to stay firmly within the critical 12-hour window, preserving full system integrity and ensuring unbroken data continuity across both vital IT and OT networks.
Beyond Connectivity: The Lasting Impact for Facility
For the facility, the enduring benefits of 3sab's intervention transcended mere aesthetic improvement. The newly implemented structured cabling solutions provided:
- Simplified maintenance and rapid fault isolation: A direct result of crystal-clear labeling and comprehensive documentation, cutting down troubleshooting time dramatically.
- Significantly reduced downtime risk: Offering invaluable peace of mind during any future upgrades or necessary expansions.
- Improved airflow and enhanced safety: Achieved through perfectly organized routing and the elimination of hazardous cable clutter.
- Unrivaled future scalability: The robust infrastructure is now primed to effortlessly support next-generation smart manufacturing technologies and critical IoT integration.
Conclusion: Structure that Sustains Production
What began as a disorganized tangle of patch cords evolved into a showcase of structured efficiency and reliability.
Through expert planning, disciplined execution, and precision craftsmanship, 3sab delivered a wired infrastructure that now supports the client’s demanding production operations securely, cleanly, and confidently.
